Model 330 Mini PD/RFI Locator

Portable Fault Detectors for Substation and OH Line Assets

COMPACT
All-in-one receiver and antenna for handheld convenience
STRAIGHT FORWARD
ldeal for use by linemen, metermen, and trouble shooters
SENSITIVE
Quickly locates most sources of power line PD and sparking that causes interference and failures
TUNEABLE
Frequency adjustable to tune away from unwanted signals and zero in on sparking
FILTER
Digital filter minimizes distraction of non-50 Hz sources such as ignition noise

The Mini RFI Locator is a compact, easy-to-use tool for locating power line sparking which causes radio and TV interference.
Designed for use by field personnel, the Mini Locator combines a sensitive receiver, analog meter, speaker and antenna, all in one hand-held unit.
Frequency and gain control knobs enable the operator to optimize reception of RFI signals. The four-element Yagi antenna provides additional gain and superior direction finding.

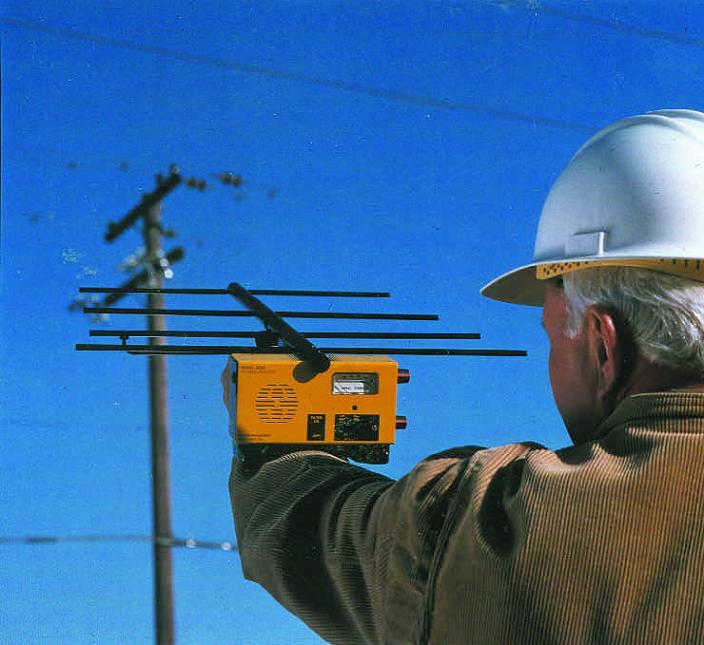

PD sources are located by pointing the antenna toward a power line and listening for the distinctive RFI noise. The pole demonstrating the highest noise level indicates the source.
