SMART ROBUST MOTOR OPERATING MECHANISM  FOR CONTROLLING AND MONITORING DISCONNECT SWITCHES  REAL TIME MONITORING

A TRULY RELIABLE INDICATOR COMPATIBLE WITH ANY SWITCH

iMCC is an intelligent and robust motor operating mechanism for controlling and monitoring disconnect switches. It offers variable speed control, monitoring, SCADA signaling, optional IEC 61850/DNP 3.0 communication protocols, optical positioning and more.

Robust mechanical design
Ice breaking mode
Virtually maintenance-free
optical encoder

The smart operator provides all the mechanical features of a conventional motor operator that is virtually maintenance free with the added value of an integrated high tech monitoring and control module called the EHTi controller.

This smart operator is compatible with most disconnect switches on the market requiring either a single-turn rotation of 45 to 220 degrees or multiple turns.

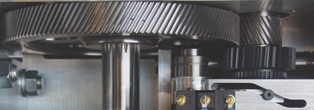

iMCC provides all the mechanical features of a conventional motor operator that is maintenance free and integrated with a high tech monitoring and control module called iCOD. iMCC is compatible with most single-turn disconnect switches manufactured requiring a rotation of 45 to 220 degrees. It can be used for multiple-turn disconnect switches as well. Using high precision gears, robust gearbox and an overrated motor, it is designed to operate for the life of the disconnect switch.

iMCC is the result of five years of research and development. It is designed to provide utilities and heavy industrials a level of security and efficiency not previously available. Furthermore, iMCC is designed to be virtually maintenance free.

• Optical Positioning System & Dynamic Break
• Monitoring
• Real-Time Analysis
• Variable Speed Control
• Notification/Communication
• Mechanically Conforms
• Optional intelligent operation sequence
• Robust stainless steel or aluminum housings and components
• Conventional push buttons replaced by membrane switch
• Cam switches replaced by optical positioning system
• Power relays replaced by solid state motor drive
• Maintenance free gearbox (no lubrication)
• Overcurrent detected and limited
• Contact oxidation eliminated
• IP56 housing

REAL-TIME MONITORING AND ANALYSIS
Voltage, current, torque and position (date stamped)
Live system components status
Detection of issues preventing full operations (positioning in contact fingers, misalignments,etc…)
Up to 400 operations logged for in-depth analysis
Allows further monitoring through real-time analysis

VARIABLE SPEED CONTROL
Arcing time decreased significantly
Reduced inrush current
Improved mechanical operation efficiency

NOTIFICATION/COMMUNICATION
Optical positioning system (no cam switches)
Plug and play auxiliary signal module
Up to 30 configurable outputs
DNP3, IEC61850 protocols
No external RTU required (Built in)

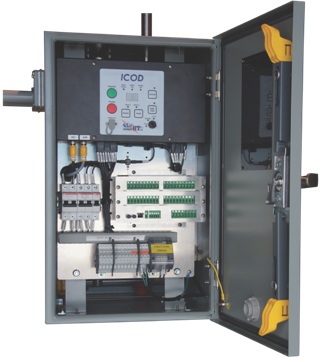

CABINET
Stainless steel painted
Nema 4X (IP56) rated
Various Transmission Options
Key interlock available

ALARMS AND CODES
32 different codes
2 alarm levels
Health signal on main terminal block
Robust mechanical design
Ice breaking mode
Virtually maintenance-free
optical encoder

OPTIONAL FEATURES
Mechanical decoupling mechanism
Third party communication gateway
Third party communication modem
Key interlock system
Internal or external power outlet
Internal lights with door switch
Hand wheel for manual operation
Any other customer specific need
